Preference Test in Decode

Overview



The Preference Test block in Decode presents up to 4 images to participants and asks them to select which one they prefer. You can enable tracking technologies such as Facial Coding, Eye Tracking and Mouse Click to capture behavioural and emotional data alongside the stated preference.

How to Set Up a Preference Test



Step 1: Add the Block

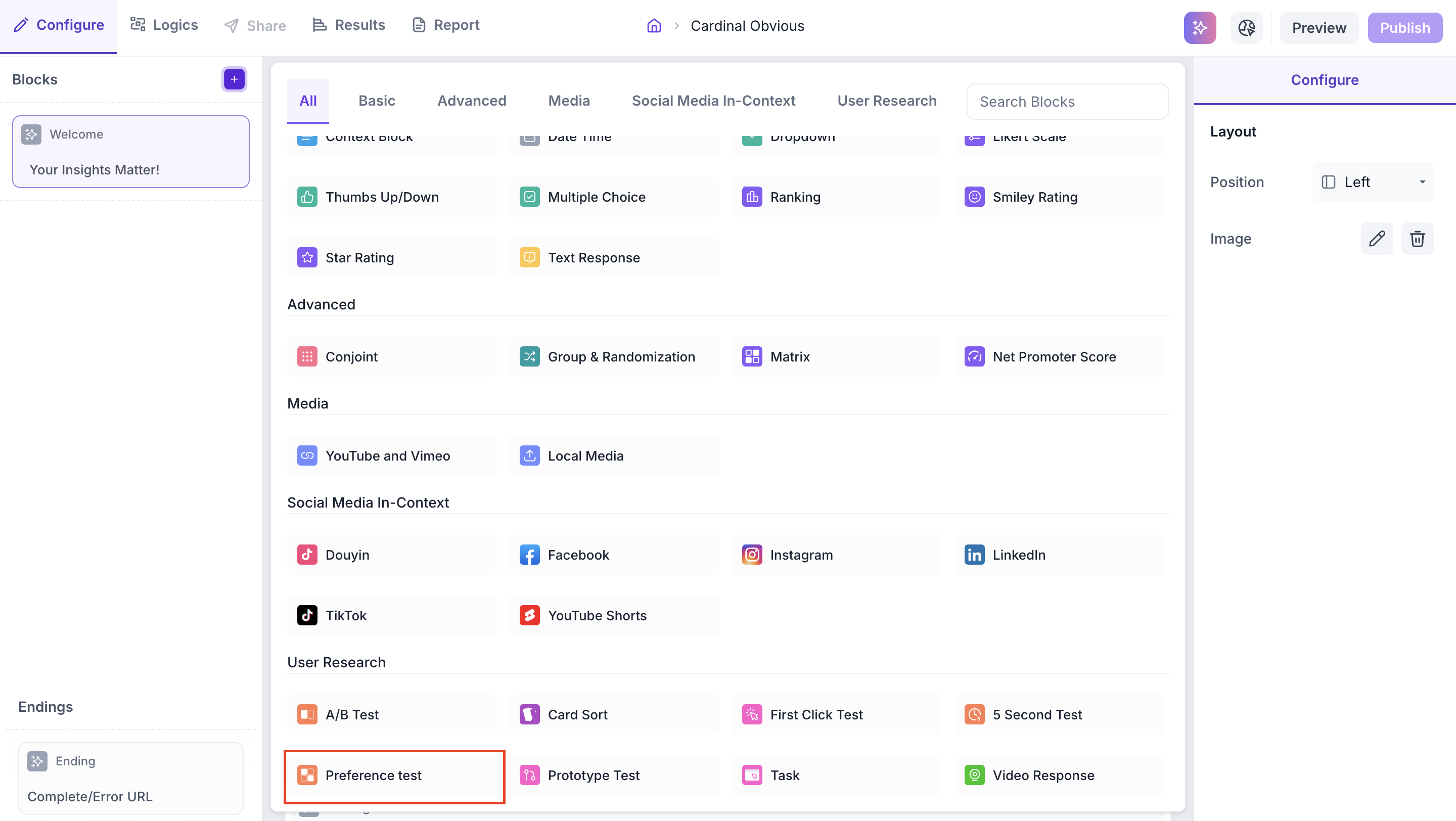

Click the + icon in the left panel to open the block selection panel. Under the User Research section, select Preference Test.





Step 2: Upload Your Images

Click the upload area or drag and drop your image files into the block.



File upload limits

Maximum files: 4. File size limit: 20 MB per file. Supported formats: JPG, JPEG, PNG.



Step 3: Configure Properties

Use the Configure panel to set the following properties for this block.



Options

1. Response Required: enabled by default. Participants must select one of the images before proceeding to the next block. Disable this if you want to make the question optional

2. Randomize: shuffles the order in which the images are displayed to reduce order bias

3. Technologies: Select the tracking technologies to enable for this block.

  • Facial Coding: Tracks facial expressions to identify emotional responses such as happiness, surprise and anger. Requires the participant's camera to be enabled
  • Eye Tracking: Monitors eye movement and gaze to understand which areas of each image received the most visual attention
  • Mouse Click: Records where participants click on each image, providing insights into which elements drew the most interaction



RESULTS



Once the study is live and responses are collected, you can view the results in the Results tab.

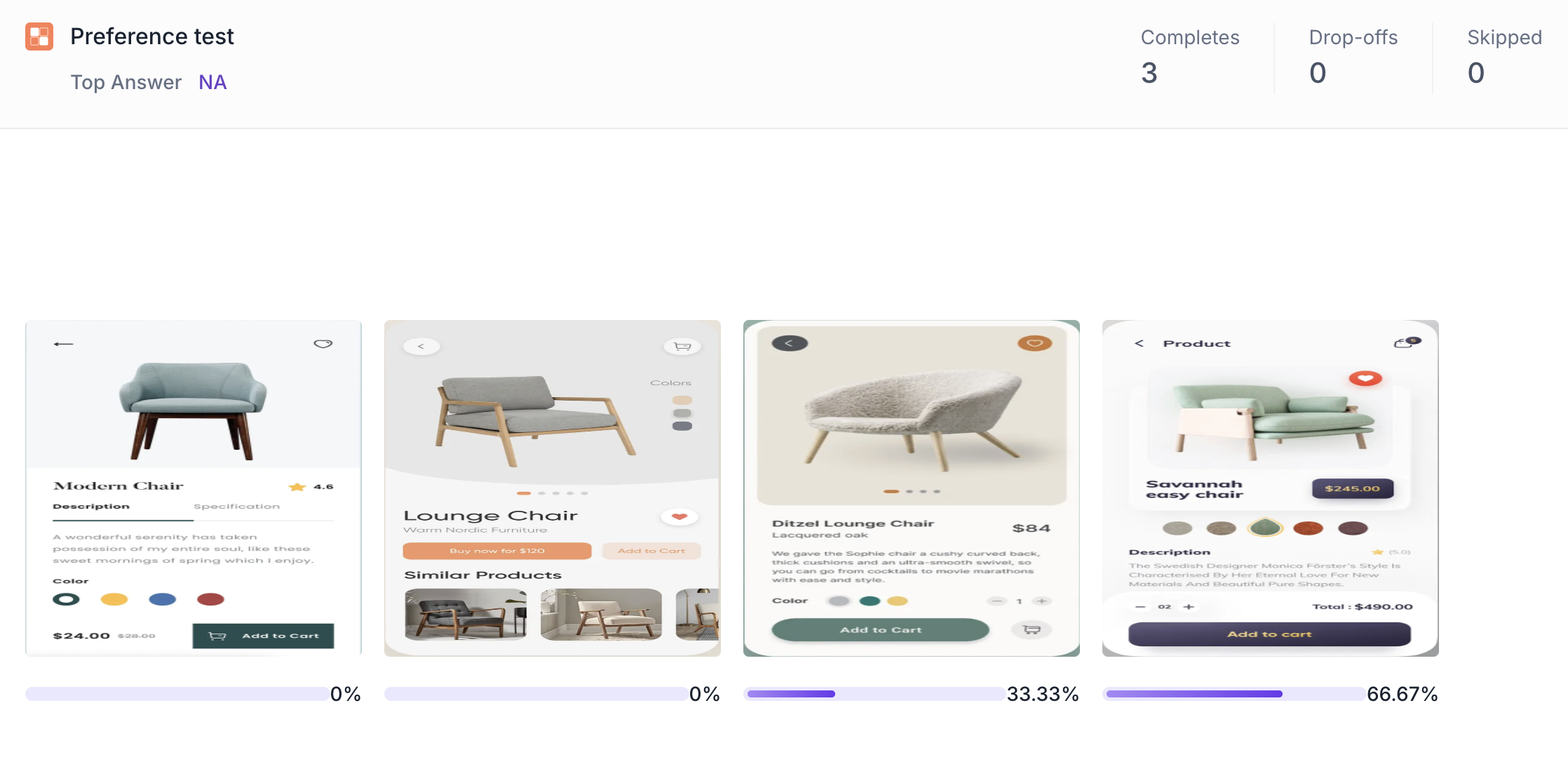

Block Level Summary

The following metrics are displayed at the top of the Preference Test block results.

  • Completes: Number of participants who completed this block
  • Drop offs: Participants who exited the study before reaching this block
  • Skipped: Participants who viewed the block but did not respond



Image Comparison View

All images are displayed side by side with a percentage bar below each one showing the proportion of participants who selected it. This gives you a direct comparison of preference across all versions in a single view.





Individual Image Results

Use the arrows on either side of the image to move between versions and view detailed results for each one. The following data is available for each image.



Heatmap and Transparency Map

The image is displayed with a visual overlay showing where participants looked. Switch between Heatmap and Transparency Map views using the view selector below the image.

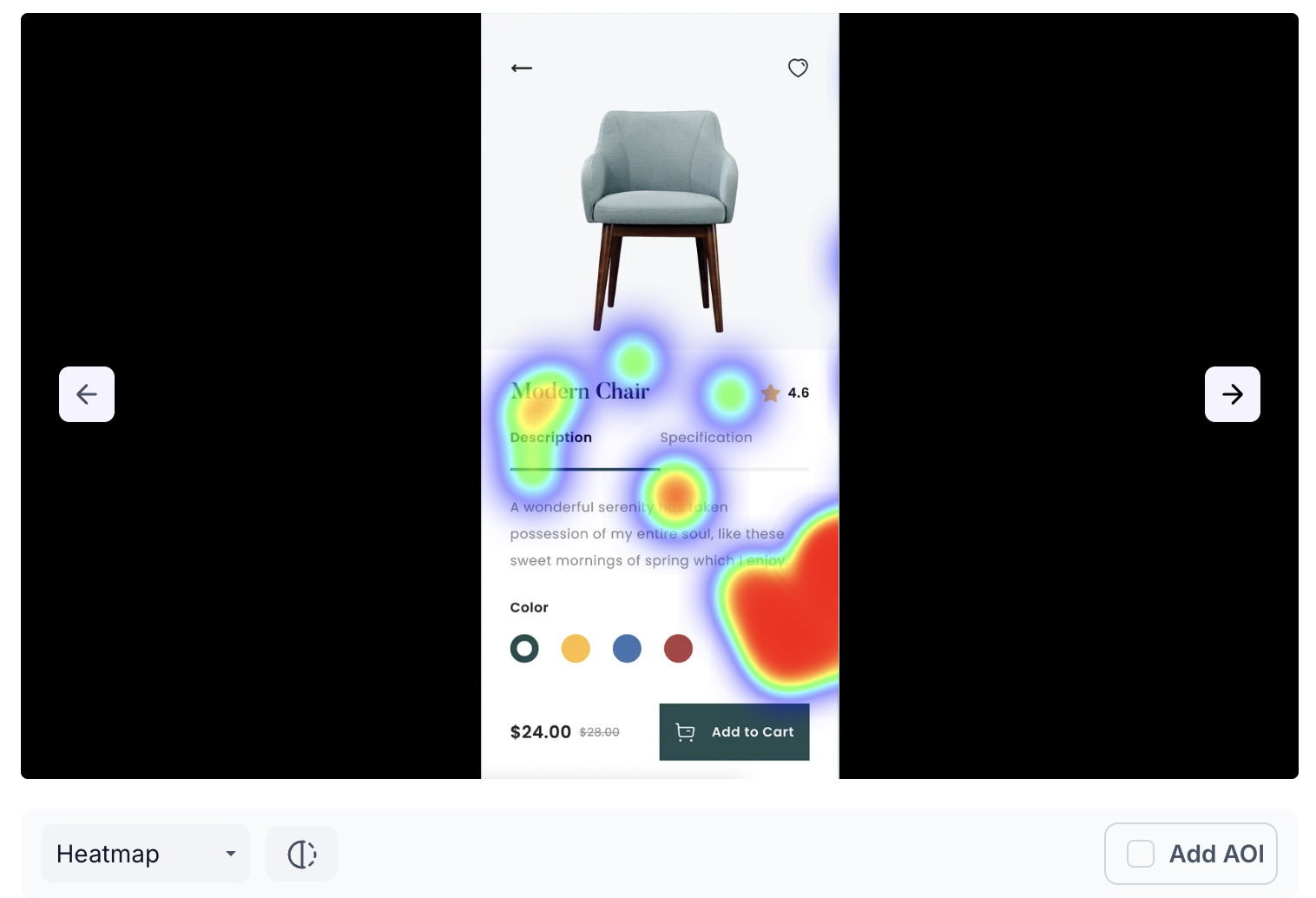

Heatmap: Displays aggregated gaze intensity using a colour gradient from cool to warm. Warmer colours such as red and orange highlight areas that received the most visual attention. Cooler colours indicate areas that received less attention

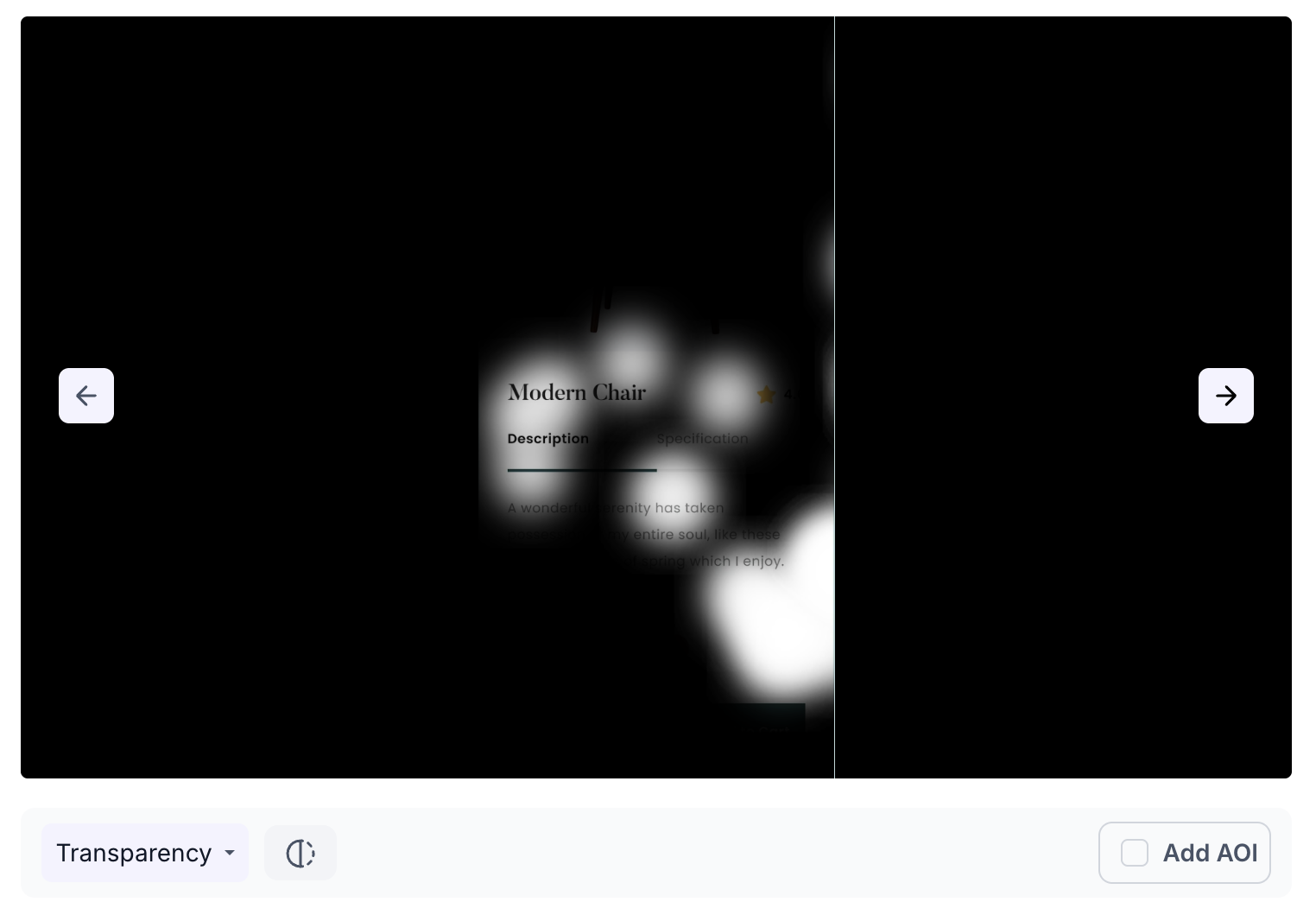

Transparency Map: Makes areas of the image more transparent where participants looked most, providing a clear view of attention distribution without the colour overlay of the heatmap





Click: Shows X markers on the image indicating where participants clicked, revealing which areas of the image drew the most interaction.

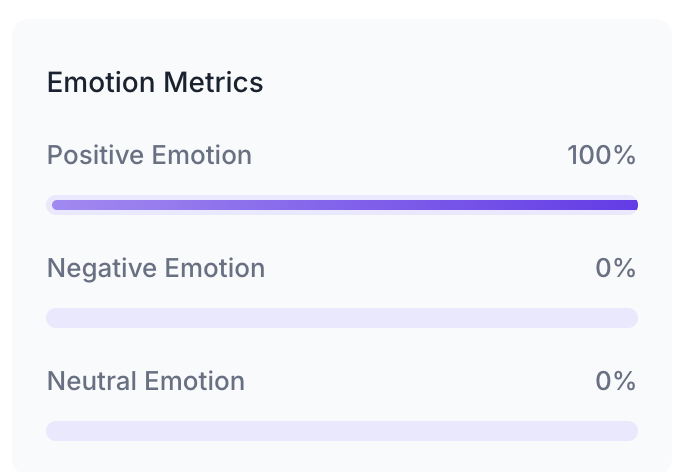

Emotion Metrics

Shows the emotional response of participants while viewing this image. Each metric is shown as a percentage of total participants.

  • Positive Emotion: Percentage of participants who expressed a positive emotional response such as happiness or surprise
  • Negative Emotion: Percentage of participants who expressed a negative emotional response such as anger or disgust
  • Neutral Emotion: Percentage of participants who expressed no strong emotional response





Areas of Interest

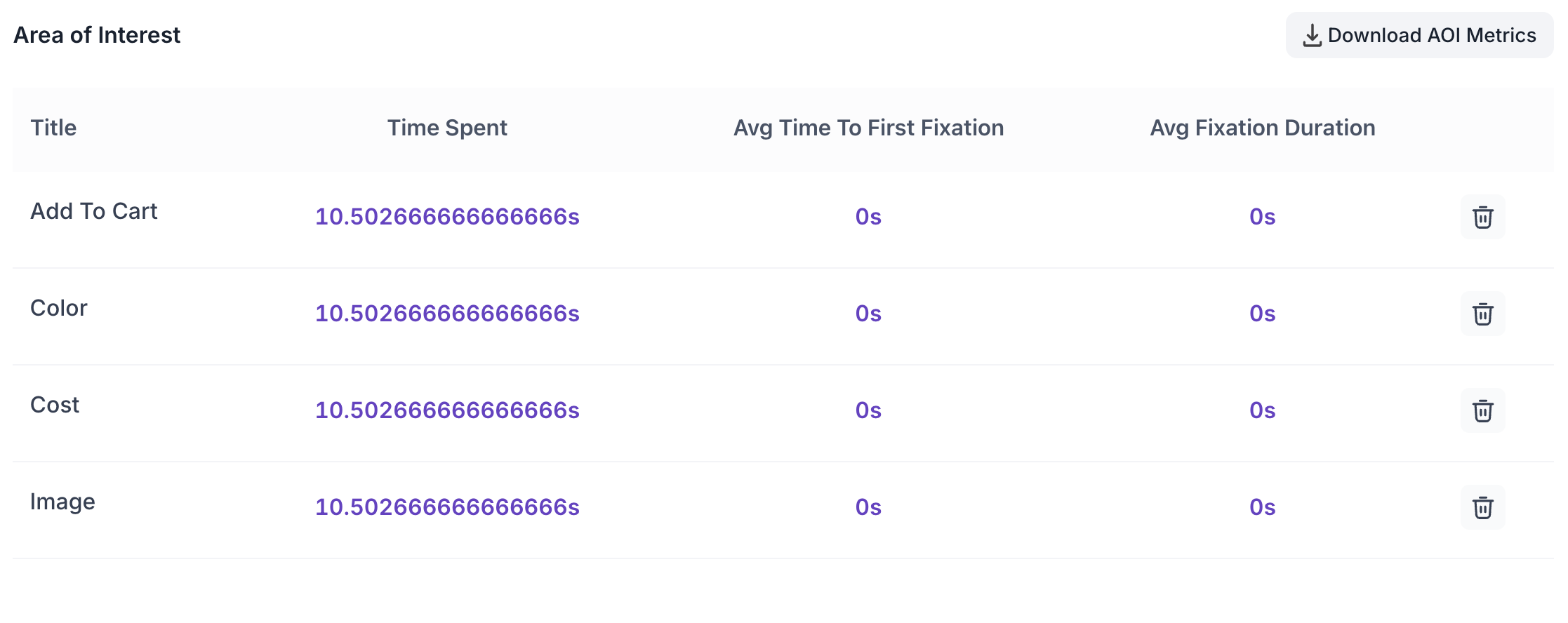

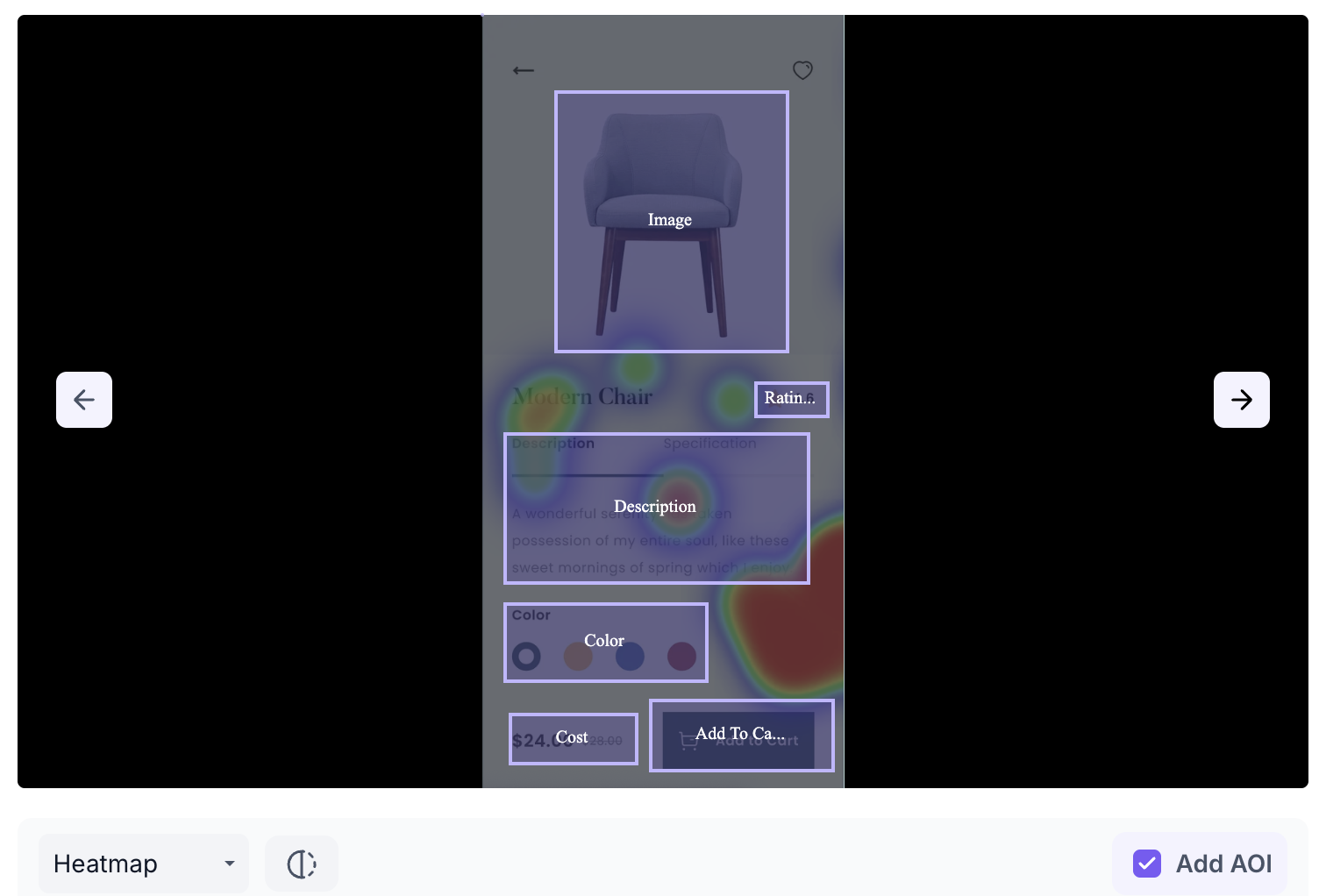

Areas of Interest allow you to track participant attention within a specific region of the image, such as a logo, a button or a design element. Click Add AOI to draw a box over the area you want to track. Once saved, each AOI appears in the Area of Interest table with the following metrics.





  • Title: The name assigned to the AOI
  • Time Spent: Total time participants spent looking at this area
  • Avg Time to First Fixation: Average time taken for participants to first notice this area
  • Avg Fixation Duration: Average length of time participants held their gaze on this area





AOI data can be downloaded as a CSV file using the Download AOI Metrics button.
